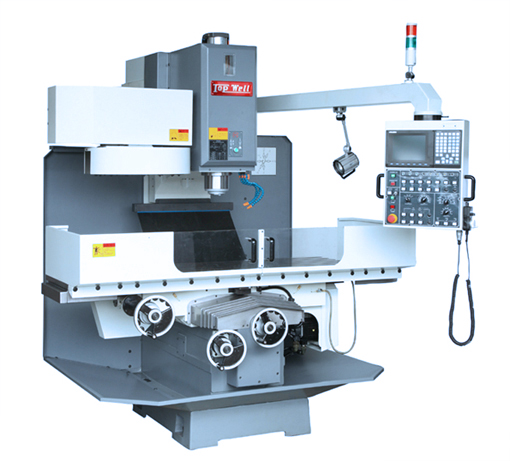

Model : TW-40MCO
BED TYPE CNC TW-40MCO SPECIFICATIONS
| Specifications |
MODEL |
TW-40-MCO |
| Table |
Table Size |
460 x 1500 ( 18" x 59" ) |
|
T-slots |
16 x 5 x 65 (0.63" x 5 x 2.56" ) |
|
|
T-slots distance |
80 (3.149") |
|
| Travels |
Longitudinal (X) |
1000 (40") |
|
Cross (Y) |
525 (20.5") |
|
|
Vertical (Z) |
600 (23.6") |
|
|
Spindle to column |
550 (21.6") |
|
|
Spindle to table min-max |
100 ~ 700 |
|
| Spindle |
Main motor power |
7.5 / 10HP |
|
Taper |
ISO#40 |
|
|
Speeds |
70 ~ 4000 |
|
| packing size |
Net weight |
2750 kgs (6050lbs) |
|
L x W x H |
2007 x 1930 x 2490 (79" x 76" x 98" ) |
|
| Machining capacity |
Maximum work piece |
600 kgs (1320lbs) |
| Feedrate |
Rapid feed rate for X, Y |
8000 mm / min (315 IPM ) |
|
Rapid feed rate for Z |
5000 mm / min ( 197 IPM ) |
All specifications and designs are subject to change without notice.
